STULZ CompTrol
STULZ' innovative CompTrol is designed to take the controlling of your airconditioning units to a whole new level.
Comfortable climate - tailored to your needs. Regardless of whether you use control technology in your building or not - your needs and wishes are the starting point when it comes to central control of your Mitsubishi Heavy Industries VRF systems.
Product Overview
The STULZ Comptrol
STULZ CompTrol makes airconditioning systems, including VRF systems from Mitsubishi Heavy Industries, more efficient, safer and more flexible. For decades, STULZ has been developing and individualizing climate solutions that are used worldwide. Thanks to this experience, we know that the use of airconditioning systems with the help of modern control and regulation technology is even more efficient, more comfortable and safer.
For example with hardware and software from the STULZ CompTrol series. Continuous remote monitoring, makes it possible to detect faults at an early stage. In addition to central control and monitoring, CompTrol can also take over registration of the energy costs from you. The modular series offers a suitable system for every task - from the local individual solution to integration into existing management systems for buildings.
- CompTrol 4Web is already compatible with e-CompTrol
- Sequencing - Create redundancy circuit, such as emergency switching and running time setting.
- Modbus TCP Gateway for integration into BMS.
- Practical information about malfunctions via email. With it contains the alarm history, date and error code.
- Automatic temperature measurement
- Simple installation without special internet knowledge
- Energy cost distribution
- System parameter readout and trend development
- And many more
You can find additonal techinal data in the download section.
More information?
Download the STULZ CompTrol brochure and configuration software.
All details concerning the STULZ CompTrol series
e-Comptrol: The smart solution
e-Comptrol
By using the smart e-CompTrol controllers, our climate systems control themselves easily and comfortably, monitor and manage your airconditioning systems over the internet. You can choose between the CompTrol ZLT* and CompTrol 4Web.
*The CompTrol ZLT will be compatible to e-CompTrol very soon.

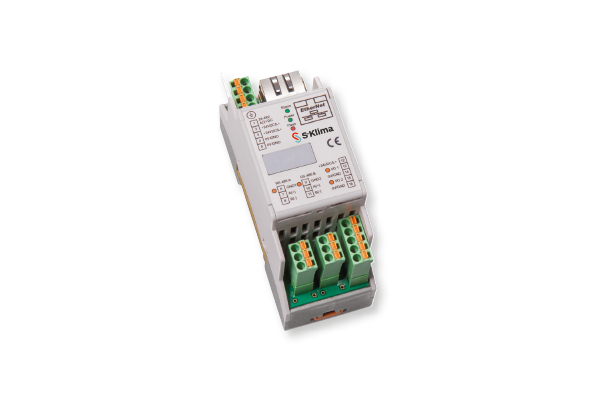

Discover the CompTrol ZLT
Control up to 160 units
The new CompTrol ZLT is the best solution for operating up to 160 indoor units. This controller is especially designed for VRF systems and projects. The smart functions fo this controller open up a lot of possiblities for wireless monitoring and controlling your airconditioning systems.
Everything in 1 overview; The ZLT makes it possible to handle large VRF projects locally or remotely using your smartphone, tablet or PC.
- Can be combined with e-Comptrol climate control systems, at no extra cost.*
- Practical information about malfunctions via email. With it contains the alarm history, date and error code.
- Automatic temperature measurement
- Simple installation without special internet knowledge
- Online and offline operation (without permanent Internet connection)
- Energy cost distribution
- Control option of 1 or more groups
- System parameter readout and trend development
* Not available just yet

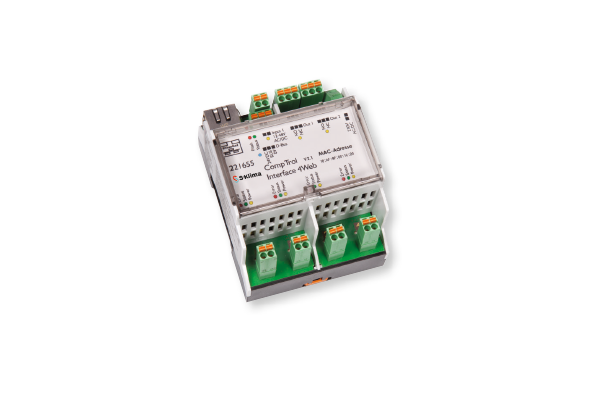

Discover the CompTrol 4Web
The smart CompTrol 4Web offers individually climate management and monitoring for 1 to 4 units or groups. Locally or via the internet. Set time programs and remain active without connection to a network.
With the CompTrol 4Web from STULZ you can control up to 4 units or groups, centrally via one pc or via tablet or smartphone.
- Can be combined with e-Comptrol climate control systems, at no extra cost.
- Practical information via email consisting out of malfunctions, alarm history, date and error codes.
- Sequencing - Create redundancy circuit, such as emergency switching and running time setting.
- Modbus TCP Gateway for integration into BMS.
- D-Bus connection for external temperature sensors and consumption meters.
- Because remote monitoring can be done online and a diagnosis can be made, this saves you travel costs.

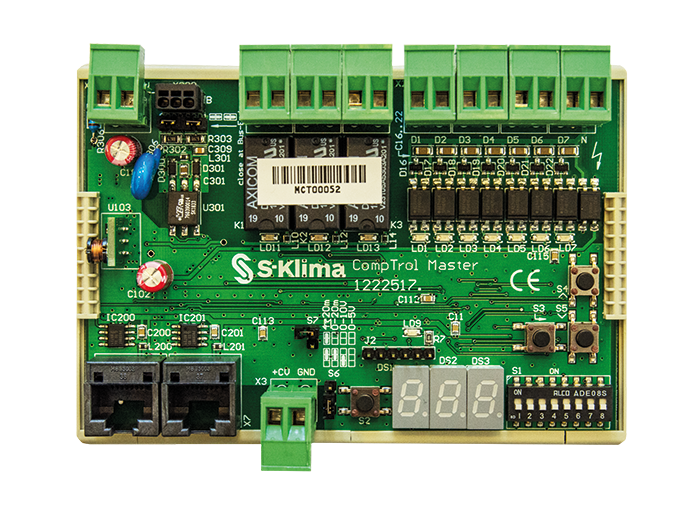

Discover the CompTrol Interface Master
Extremely efficient controlling for optimal efficiency. For airconditioning with specific applications, the standard control of the normal outdoor units is often insufficient. By means of the new Comptrol Interface Master you can handle the maximum options out of the unit. You can synchronize 5 CompTrol Intervace IV's with the CompTrol Interface Master to communicate with five outdoor units up to 125kw in both cooling and heating mode.
When external controlling is required, this must be done as completely and economically as possible, the CompTrol Interface Master can do that for you. This optional print is unique in its kind and unmatched in its performance. A higher SCOP and SEER cannot be ruled out due to the cleverly applied controlling technology whereby units can run at partial load for a longer time. The controller can also run the outdoor units in sequence and keep track of the operating hours, reducing wear and tear and extending the service life significantly. Indirectly, this print ensures lower maintenance costs for a small additional cost.
The CompTrol Signal DC
The CompTrol Signal DC is a small extra print for when an EC or DC fan should not be controlled externally but by the MHI print in 4 steps. As a result, less investment costs are required in external control technology and a better connection between the outdoor unit and AHU. DC or EC fans are about 50% more efficient than conventional AC fans

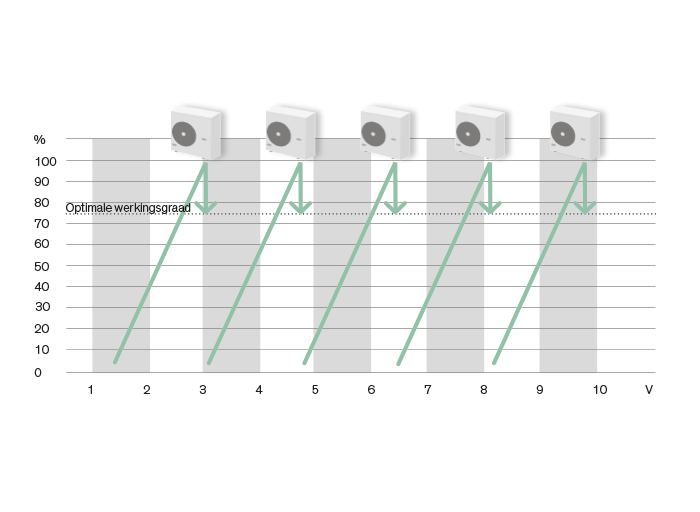

Efficient control
All 5 cascaded units work simultaneously in the best range and optimal operating area.
This results in significant energy savings.
Projects
An all-in-one solution for Corendon Mangrove Beach Resort in Curaçao
In addition to supplying eight ClimaPac air handling units and more than 500 comfort airconditioning units from Mitsubishi Heavy Industries, STULZ has delivered the controlling technology for the airconditioning units.
