STULZ actively participates in the customization of each project and prescription by carrying out preliminary studies, providing advice that will allow you to define a solution tailored to your needs. We offer comprehensive and customized Air Handling Units for each type of installation.
Knowing that every project is unique and requires different specifications, ClimaPac includes an extensive range of Air Handling Units to meet the most demanding needs and applications. To achieve maximum comfort and air quality, we develop energy efficient solutions using our extensive technical know-how and industry experience manufacturing AHUs for half a century.
STULZ expanded its range of Air Handling Units with compact configurations and smaller sizes that are adaptable to installations with less available space. Ventilation solution with a “plug & play” design, low sound levels and reduced footprint for singular applications.
The most prestigious firms in the world choose us, and our Air Handling Units can be found in the best-known hospitals, airports, hotels, offices, schools, public buildings, wineries, banks, industries and a long list of other applications, because we adapt to your needs by customizing your facilities.

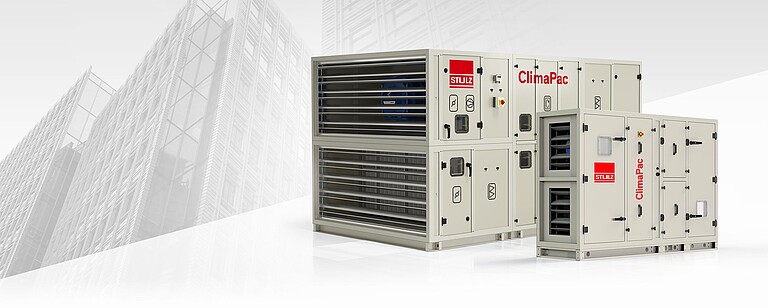

ClimaPac Air Handling Units Series offer flexible and modular configurable solutions, adapting to the needs of the most demanding proyects with air flows up to 160.000 m3 / h.

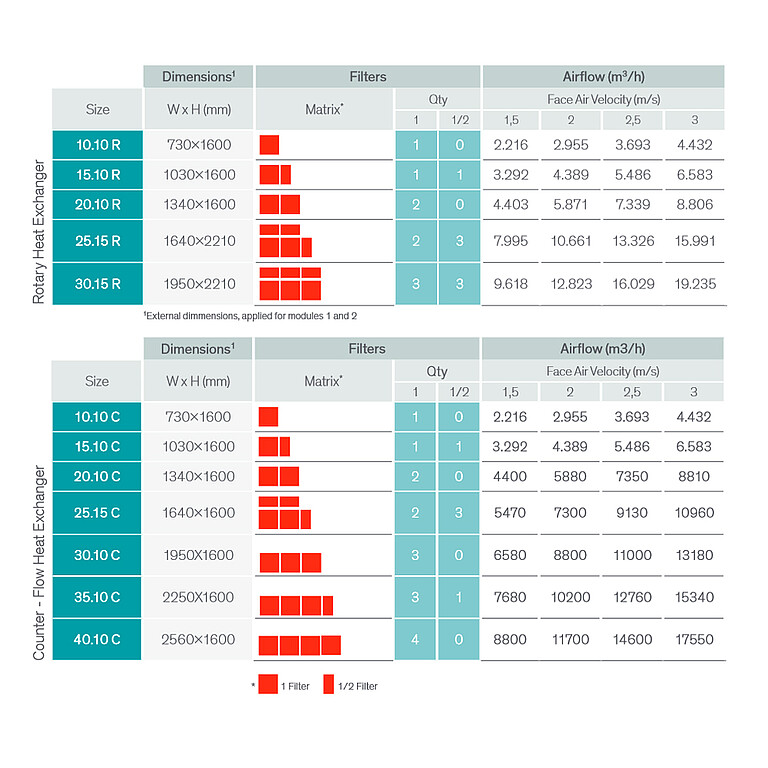

Taking into account that 80% of the units demanded by the market cover up to 15,000 m3 / h, STULZ has opti-mized the range, developing the ClimaPac Compact series with new configurations and more compact sizes to adapt to these requirements, offering a quick response in the market.
|
|
|
|
| Characteristics | Class |
|---|---|
| Mechanical strength | D1 |
| Air leaks in the casing | L1 |
| Filter bypass leaks | F9 |
| Thermal transmission | T2 |
| Thermal bridge | TB2 |
| Acoustic attenuation | |||||||
|---|---|---|---|---|---|---|---|
| Hz | 125 | 250 | 500 | 1k | 2k | 4k | 8k |
| dB | 17 | 17 | 11 | 18 | 26 | 36 | 47 |
Operating temperatures:
Typical operating temperature range for a standard configuration is -15 / +40ºC.
Operating temperatures will depend on the final configuration, more specifically the components that will be included in the unit. For more information, consult the installation, use and maintenance manual.

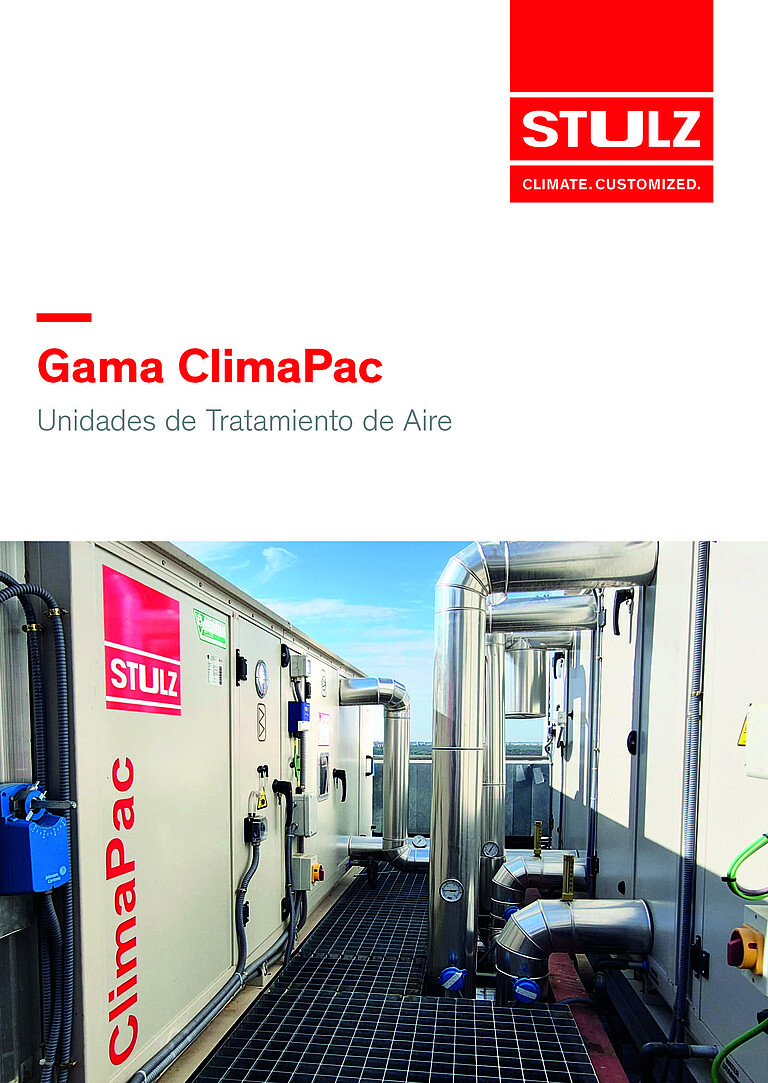

Download all the relevant material for the ClimaPac and ClimaPac Compact
Air conditioning systems represent an important percentage of energy consumption in the whole installation. This is why STULZ applies its extensive market and engineering experience to develop energy-efficient HVAC solutions, thereby reducing the environmental impact and CO2 emissions without compromising indoor air quality and comfort.
ClimaPac Air Handling Units Series offer flexible and modular configurable solutions, adapting to the needs of the most demanding proyects with air flows up to 160.000 m3/h. Taking into account that 80% of the units demanded by the market cover up to 15.000 m3/h, STULZ has optimized in the ClimaPac range new configurations and sizes to adapt to these requirements offering a quick response in the market. Introducing the ClimaPac Compact series.
Regardless the space limits of your installation, a commitment to indoor air quality holds safe and future benefits.
Air conditioning healthy buildings. With STULZ you can breathe a sigh of relief.
The range of ClimaPac Air Handling Units is a solution adaptable to any application, highly efficient but that at the same time guarantees the well-being of people in closed spaces. Ensuring air quality, health and thermal comfort indoors.
Aiming to achieve the greatest energy efficiency, ClimaPac's range uses state-of-the-art components whose main characteristics are low energy consumption and high efficiency.
The ClimaPac range complies with the following directives:
Eurovent certification
The ClimaPac range participates in the Eurovent Certification program for Air Handling Units (AHU).
● Chilled water cooling coils
● Hot water coils
● Evaporator coils (DX Systems)
● Condenser coils (DX systems)
● Panel filters (Coarse, ePM10 and ePM2.5)
● Compact filters (ePM10 and ePM1)
● Bag filters (Coarse, ePM10 and ePM1)
● HEPA absolute filters (E10 to H14)
Plug fan:
● EC IE4 motor
● AC IE3 motor
● 100% aluminum and plastic (without corrosion problems)
● Different sealing classes available
● Class 2 tightness as standard
● Cross flow plate heat recovery units
● Rotary heat recovery unit
● Recovery coils
● Steam generators
● Evaporatives per panel
● Spray banks
● Ultrasonics
● Silencers built by cells, adaptable to all internal dimensions of the air conditioners.
● High damping capacity in the sound spectrum.
Gas heating systems:
● Direct system through an air vein
● Indirect through combustion chambers

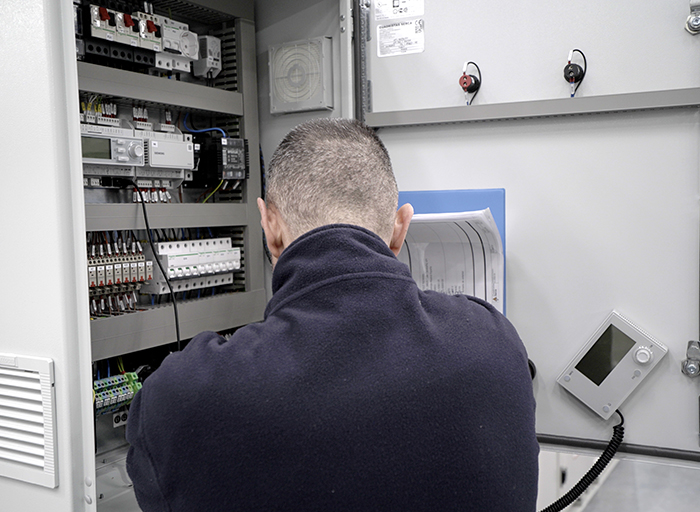

The ClimaPac range has an integrated regulation and control system.
● Plug & Play solution
● Factory Set Control
● Field equipment included: pressure and temperature probes, valves, actuators and pressure switch.
● Communication protocols:
○ BACnet (IP; MS/TP
○ LON
○ Modbus(RTU; TCP)
○ Web
● Multilingual
Selection of Air Handling Units
Project calculation, design and management
Maximum flexibility in the design of your AHU. We offer the optimal customized solution tailored to your needs.
With some simple data on the operating conditions of the installation such as air flow rates, coil calculations, temperatures, filtration efficiency, among others, we will carry out the study of the project, offering the best selection of the unit adapted to your installation.
Complete the required technical data below and our engineers will prepare the selection quickly and easily, adapting the specifications of your project to the appropriate AHU.
Perfect performance adapted to any project, wherever you need it: no matter how demanding the project, STULZ has the optimal solution.
We design the equipment adapted to your needs, whatever the application: hygienic, commercial or industrial.
