gaSteam

gaSteam is a green solution as it operates on natural gas, a clean and economical energy source. gaSteam works by burning natural gas or LPG, without needing to change burner when changing the type of fuel, but rather simply setting some burner calibration parameters.

Safety and Certification
gaSteam is fitted with multiple safety devices, and is ETL and CE certified (certification issued by TÜV-DVGW ); moreover, the flamer control board has AGA certification. The low NOX emissions means the appliance is approved as class 5 for models UG045, UG090 and UG180.

Energy saving
Estimated savings of up to 70% in energy costs are possible when using gas rather than electricity as the energy resource to produce steam in normal operation. gaSteam is therefore the ideal choice for applications where steam is needed many hours a day, bringing significant savings in operating costs and a rapid return on investment.

• High efficiency and the environment
  The advanced design of the stainless steel heat exchanger, with a large heat transfer area, ensures high efficiency (94-96%) and excellent corrosion resistance. gaSteam works by burning natural gas, a clean and economical energy source.

• Precision
  gaSteam is ideal for precision applications, with continuous flow-rate modulation from 25% (12.5% on UG180) to 100% (±2% from set point).

• Easy to install

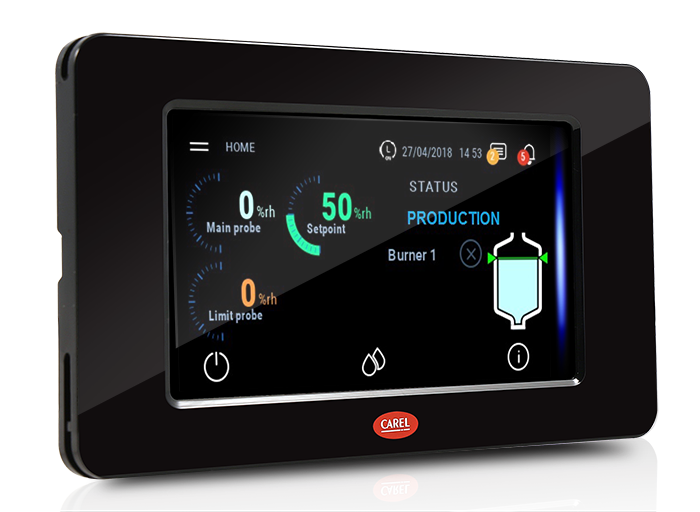

  Unit setup is made easy by the simple and intuitive user interface, which guides users in setting the parameters for basic humidifier operation.

• Safety
  gaSteam has numerous safety systems including: negative-pressure double-closing gas valve, flame sensor, flue gas temperature sensor.

• Easy cleaning and maintenance
  Controller fitted with diagnostic functions and alarm log display. The unit has been specially designed to make cleaning and routine maintenance easier.

• Models with steam production of 45, 90 and 180 kg/h;

• Modulation from 25 to 100% of rated capacity (from 12.5% on UG180);

• Maximum efficiency and safety ensured by the premix burner with proportional gas valve.

Technical data can be found in the download section below.
